View Power Burner Literature

A Power Burner Boiler Designed
For A Variety Of Applications

Designed with simplicity, efficiency and safety in mind.

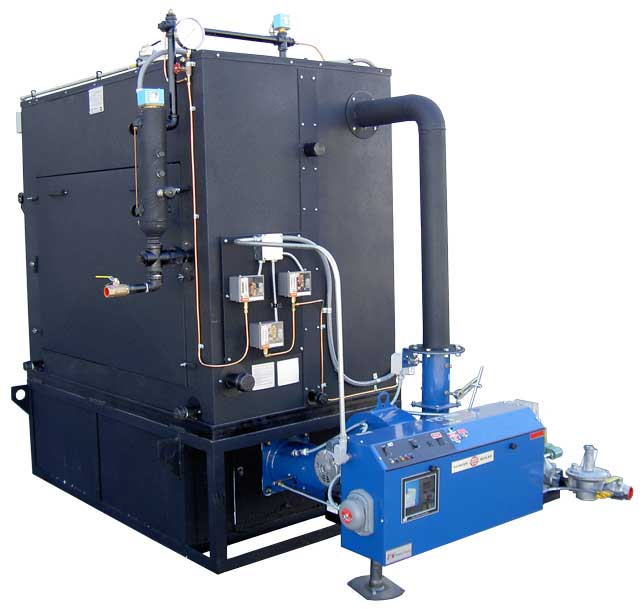

The Parker water tube design offers an extremely efficient, reliable hot water boiler built for the long term and ease of maintenance. The Parker design offers many advantages.

Compare ours to the competition. Our large horizontal steam drum provides ample steam release area to assure dry steam delivery. No steam separators are required.

Key Features & Advantages

25 Year Warranty Against Thermal Shock

No Parker Boiler has ever been known to experience an internal explosion.

Low NOx models are available incorporating Low NOx Burners.

PERFORMANCE

Efficiencies Up to 80%

Pressures Up to 250 PSI

Dependable Burner

A highly efficient power burner is provided, and Low NOx burners are available. The burner and controls are factory wired, tested and listed by Underwriters Laboratories. All boilers are provided with two stage or modulation firing.

LOW COST OPERATION

The staggered tubing design provides a 10-pass self-baffled heating surface to increase efficiency.

Internal Accessibility Inspection

Full length cabinet doors can easily be removed in a matter of minutes, making the internal boiler, drum, tubes, and burners readily accessible. Easy to- remove gasketed access plugs are provided at both ends of every tube. Boiler inspections can be accomplished quickly and at low costs.

A Closer Look Inside
Low NOx Premix Technology

Parker Boiler’s fully modulating variable speed low NOx burner systems offer digital electronic set point control, VFD blower for reduced electrical energy usage, precise fuel/air ratio control with no linkages, cams or FGR valves. The simplicity of the System with no FGR fan or valve, allows normal boiler operators to adjust and service the System. Our heavy duty premix metal fiber burners not only provide the lowest emissions possible but also provide long durable service life.

Advantages to having a Low NOx Boiler

• Parker heavy duty premix metal fiber burners.
• Burners provide the lowest emissions possible with a long durable service life.
• Variable Speed Blowers for electrical energy savings.
• Fully modulating variable speed Low NOx Burner Systems offer many advantages.
• Extremely Low NOx & CO levels are attained by our Premix Burner System.

Heavy Duty Construction
Built to Last

Every Boiler is built with our customers needs first.

Parker tubes are 1-5/16” OD. 0.12"(11GA) heavy thickness steel which is almost double standard gauge boiler tubing for the same diameter size. The bent tube design permits free expansion and con-traction of each tube independently with changes in temperatures, eliminating strain on the metal, warping and leaking, typical of rigid straight tube design. This construction utilizes heavy material with flexibility to provide extreme safety and long life of tubes.

SAFETY

Our ASME tube bundle is extremely flexible and offers a long life with a 25 year warranty against thermal shock. No Parker Boiler has ever been known to experience an internal explosion.

EFFICIENT, DEPENDABLE BURNER

A highly efficient power burner is provided. The burner and controls are factory wired, tested and listed by Underwriters Laboratories. Boil-ers are provided with two stage or modulation firing.

RELIABLE AND DEPENDABLE BURNERS
LARGE HEATING SURFACE

A large amount of heating surface provides increased efficiency, long boiler life and minimizes the chance of scalding. Compare ours to the competition.

HEAVY INSULATED CABINET

The cabinet is durably constructed with two thicknesses of heavy steel, insulated on all sides with high temperature thermal fiber insulation to effectively reduce heat losses to a minimum.
