Never A Compromise
For Quality or Safety


The large horizontal steam drum provides ample steam release area to assure dry steam delivery. No steam separators are required. Our boiler also requires less than ten minutes to heat up to 100 PSI from a cold start which is a considerable time and fuel saver. And due to our staggered tubing design, our boilers proved a multi-baffled heating surface to increase efficiency.

70 to 150HP Steam Boilers
The Parker Boiler water tube design offers an extremely efficient, reliable steam boiler built for the long term and ease of maintenance. The Parker Boiler design offers many advantages. Compare ours to the competition.

Parker Boiler Certifications
All Parker Boiler Steam Boilers are manufactured in accordance with the ASME Power & Heating Boiler Codes and registered with the National Board of Boiler and Pressure Vessel Inspectors. The standard natural gas fired model is furnished as an Under-writers’ Laboratories, Inc. Listed Gas Fired Boiler Assembly and displays their symbol on the nameplate. Outdoor, propane and Low NOx models are ETL listed. Canadian models are C-ETL List-ed Industrial and Commercial Gas Fired Packaged Boilers certified to CAN/CGA 1-3.1 and UL 795.

Parker Boiler Certifications
All boilers are built in accordance with the ASME Power & Heating Boiler Codes, Sections I & IV. Boilers above 15 PSI are furnished with the “S” Stamp and Trim. Boilers for 15 PSI are normally furnished with the “H” Stamp and Trim. All Boilers are inspected and registered with the National Board of Boiler and Pressure Vessel Inspectors. All individual gas and electrical controls are Certified or UL Listed. All Low NOx, outdoor, propane and natural gas fired models are ETL Listed as “Industrial and Commercial Gas Fired Packaged Boilers” and certified to UL795. All units are provided with trim and controls to meet ASME CSD-1 standards for “Controls & Safety Devices for Automatically Fired Boilers”. In addition, all units also meet the standards of the International Conference of Building Officials, the International Association of Mechanical & Plumbing Officials and the Uniform Mechanical Code.

Easily Repaired
Any steam boiler will likely require retubing sooner or later, depending on care and operating conditions. Recognizing this, special design consideration was given to this concern. Parker Steam Boiler Tubing is constructed in several individual sections, each connected to the boiler drum and lower Headers by pipe unions. To replace any section of tubing, it is only necessary to undo the union and remove that section of tubing. It’s possible to temporarily operate the boiler with a tube section completely removed by replacing the unions with pipe caps. All sections of tubing are interchangeable and so low in cost that many owners purchase an extra section of tubing to have on hand to meet any emergency requirement. Furthermore, the tubing sections on most models can be turned over after several years of operation adding many additional years of service.

Advantages (Including Low NOx Models)

  • Safety
  • Large Heating Surface
  • Simplicity
  • Dry Steam
  • Low NOx System
  • Durable Low NOx Burners
  • VFD Blowers
  • Low Cost Operation
  • Efficient Operation
  • Fast Heat-Up
  • Accessible Internal Inspection
  • Ease of Inspection and Repair
  • Codes
  • Heavy Duty Tubes
  • Heavy Insulated Cabinet

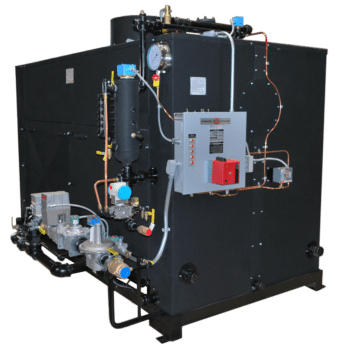

Industrial Packaged Steam Boiler
Horizontal Drum Sectional Water Tube
70 to 150HP Gas Fired

Atmospheric Burner System
The Atmospheric Burner System, the control system and entire boiler are furnished so that it is simple to operate by regular personnel. Simplicity is a decided advantage as there are no expensive blowers, complicated controls, or burner adjustments, as is necessary on many boilers.

Atmospheric Steam Boiler Insert

Low NOx Premix Packaged
Industrial Packaged Steam Boiler
Horizontal Drum Sectional Water Tube
70 to 150HP Gas Fired

Low NOx Premix Technology With Heavy Duty Metal Fiber Burners
The Parker System offers many advantages of Low NOx and CO Emissions, uniform heat distribution over the entire heating sur-face and improved efficiencies.  The boiler incorporates a burner bed of Heavy Duty Metal Fiber Burners (MFB). Through a gas/air premix manifold, the burners may be linked to a fully modulating blower mixer which offers precise control of combustion through the full range of modulation. The Burner System is avail-able on new boilers or for retrofit of Parker. Parker Boiler’s System has been field proven on Parker and other types of boilers as a viable, extremely durable, Low NOx, efficient alternative.

Atmospheric & Low NOx Anchor Clip Drawings:
Title Download
70-150HP Atmospheric Anchor Clip Detail
  1 files      1 download
Download
70-150HP Low NOx Anchor Clip Detail
  1 files      1 download
Download
Atmospheric Boiler Drawings:
Title Download
115HP Atmospheric Boiler Drawing – Multiple Views
  1 files      3 downloads
Download
150HP Atmospheric Boiler Drawing – Multiple Views
  1 files      1 download
Download
70HP Atmospheric Boiler Drawing – Multiple Views
  1 files      1 download
Download
70HP Atmospheric Boiler Drawing (outdoor) – Multiple Views
  1 files      1 download
Download
90HP Atmospheric Boiler Drawing – Multiple Views
  1 files      0 download
Download
Low NOx Boiler Drawings:
Title Download
115HP Low NOx Boiler Drawing (outdoor) – Multiple Views
  1 files      0 download
Download
115HP Low NOx Boiler Drawing- Multiple Views
  1 files      0 download
Download
150HP Low NOx Boiler Drawing – Multiple Views
  1 files      0 download
Download
150HP Low NOx Boiler Drawing (outdoor) – Multiple Views
  1 files      0 download
Download
70HP Low NOx Boiler Drawing – Multiple Views
  1 files      0 download
Download
70HP Low NOx Boiler Drawing (outdoor) – Multiple Views
  1 files      0 download
Download
90HP Low NOx Boiler Drawing – Multiple Views
  1 files      0 download
Download
90HP Low NOx Boiler Drawing (outdoor) – Multiple Views
  1 files      0 download
Download




NOTE: All drawing dimensions should be verified prior to installation. Due to continuous improvements and irregularities of purchased structural shapes and rounding, dimensions may vary and are subject to change without notice.

If the model of the boiler you are looking for is not readily available here please contact Parker Boiler for more assistance at (323) 727-9800 from 8:00AM to 5:00PM (PST).
