Never A Compromise
For Quality or Safety


T he Parker Boiler System consists of a burner bed of Heavy Duty Metal Fiber Burners (MFB). Through a gas/air premix manifold, the burners may be linked to a fully modulating blower mixer which offers precise control of combustion through the full range of modulation.

Boilers up to 6,300,000 BTU
Parker Hot Water Boilers are designed specifically to provide the building heating and industrial processing industries with a Superior Quality Boiler with Unequaled Advantages in Safety, Long Life Service and Economical Operation.

Low NOx Hot Water Boiler Certifications (“L” Model)
All boilers are built in accordance with the ASME Power and Heating Boiler Code. All boilers are inspect-ed and registered with the National Board of Pressure Vessel Inspectors. All individual gas and electrical controls are AGA certified or UL Listed. All models are ETL Listed as “Industrial and Commercial Gas Fired Packaged Boilers” and certified to UL795. All units are provided with trim and controls to meet ASME CSD-1 standards for “Controls & Safety Devices for Automatically Fired Boilers.” In addition, all units also meet the standards of the International Conference of Building Officials, International Association of Mechanical & Plumbing Officials and the Uniform Mechanical Code.

Low NOx Hot Water Boiler w/ Internal Reclaimer Certifications (“LR” Model)
All Parker Boiler Hot Water Boilers are built in accordance with the ASME Power and Heating Boiler Code. All boilers are inspected and registered with the National Board of Pressure Vessel Inspectors. All individual gas and electrical controls are AGA certified or UL Listed. All models are ETL Listed as “Indus-trial and Commercial Gas Fired Packaged Boilers” and certified to UL795. All units are provided with trim and controls to meet ASME CSD-1 standards for “Controls & Safety Devices for Automatically Fired Boilers.” In addition, all units also meet the standards of the International Conference of Building Officials, International Association of Mechanical & Plumbing Officials and the Uniform Mechanical Code.

Safety
Our ASME tube bundle is extremely flexible and offers a long life with a 25 year warranty against thermal shock. No Parker Boiler has ever been known to experience an internal explosion.

Advantages (Low NOx and Internal Reclaimer Models)

  • Safety
  • Large Heating Surface
  • Simplicity
  • Efficiency
  • Built-In Finned Tubes (“LR” Model only)
  • Low NOx
  • VFD/Premix System
  • Low Cost Operation
  • Efficient Operation
  • Fast Heat-Up
  • Accessible Internal Inspection
  • Ease of Inspection and Repair
  • Codes
  • Heavy Duty Tubes
  • Heavy Insulated Cabinet



Low NOx Premix
Direct Fired Hot Water Boiler
Bent Steel Water Tube Parker “L” Models
300,000 to 6,800,000 BTU Gas Fired

Parker Boiler Premix Burner System
The Parker Boiler System consists of a burner bed of Heavy Duty Metal Fiber Burners (MFB). Through a gas/air premix manifold, the burners may be linked to a fully modulating blower mixer which offers precise control of combustion through the full range of modulation. Parker Boiler uses a variety of premix gas/air mixing & delivery systems for it’s “L” System boilers. Parker Boiler’s Low NOx Systems are typically designed for a 20 or 30 ppm level at 3% O2, however, special lower Low NOx boilers are available.In all cases, a Premixed gas/air is distributed to the burners by a manifold. By precisely controlling the gas/air ratio provided to the burners, Low NOx emission & efficient clean combustion is obtained.

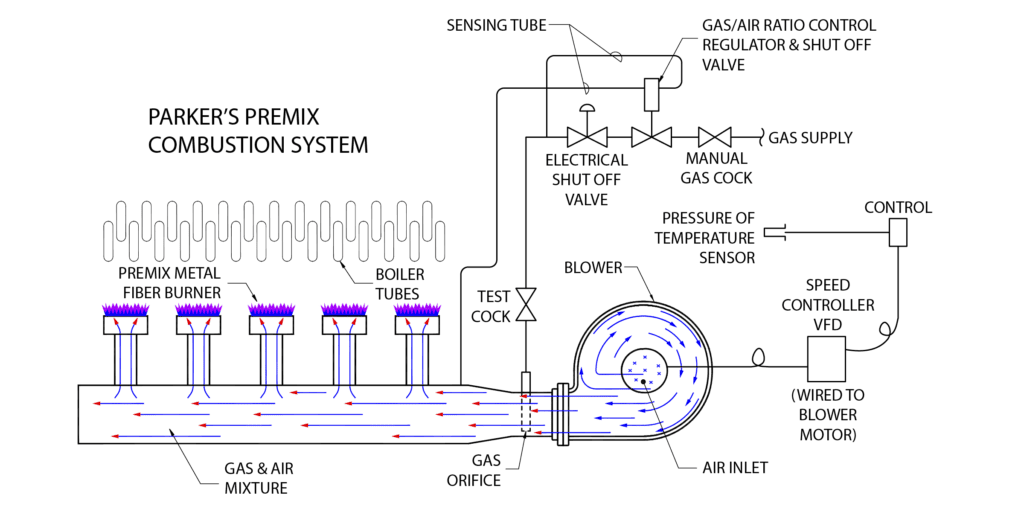

Parker Boiler Premix Burner System 4
Variable Speed Drive Fan Post Mix System
Siemens SKP – Controller

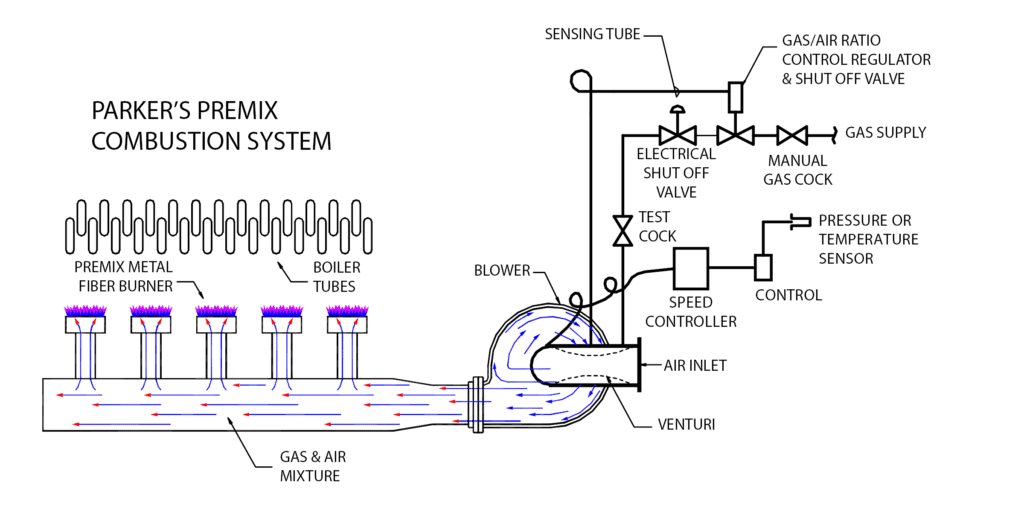

Parker Boiler Premix Burner System 5
Variable Speed Drive Fan Post Mix System
Honeywell Valve/Venturi

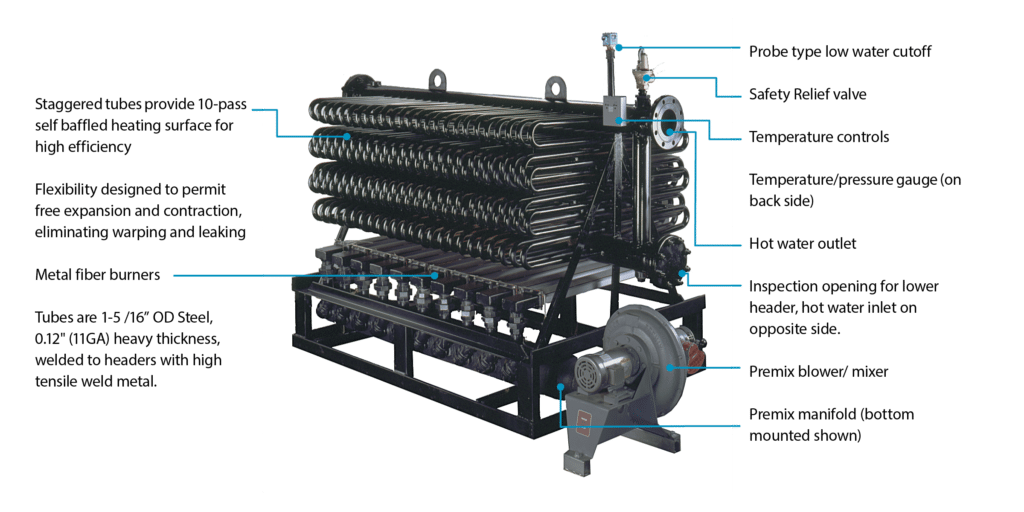

Low NOx Hot Water Boiler Insert (“L” Model)
Low NOx High Efficiency Premix
Direct Fired Hot Water Boiler

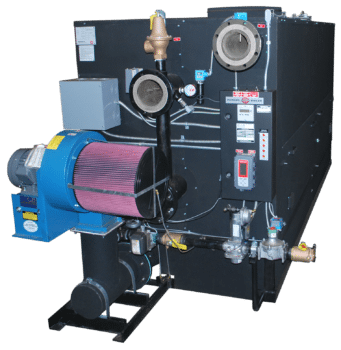

Bent Steel Water Tube Parker Boiler “LR” Model
300,000 to 6,300,000 BTU Premix Gas Fired

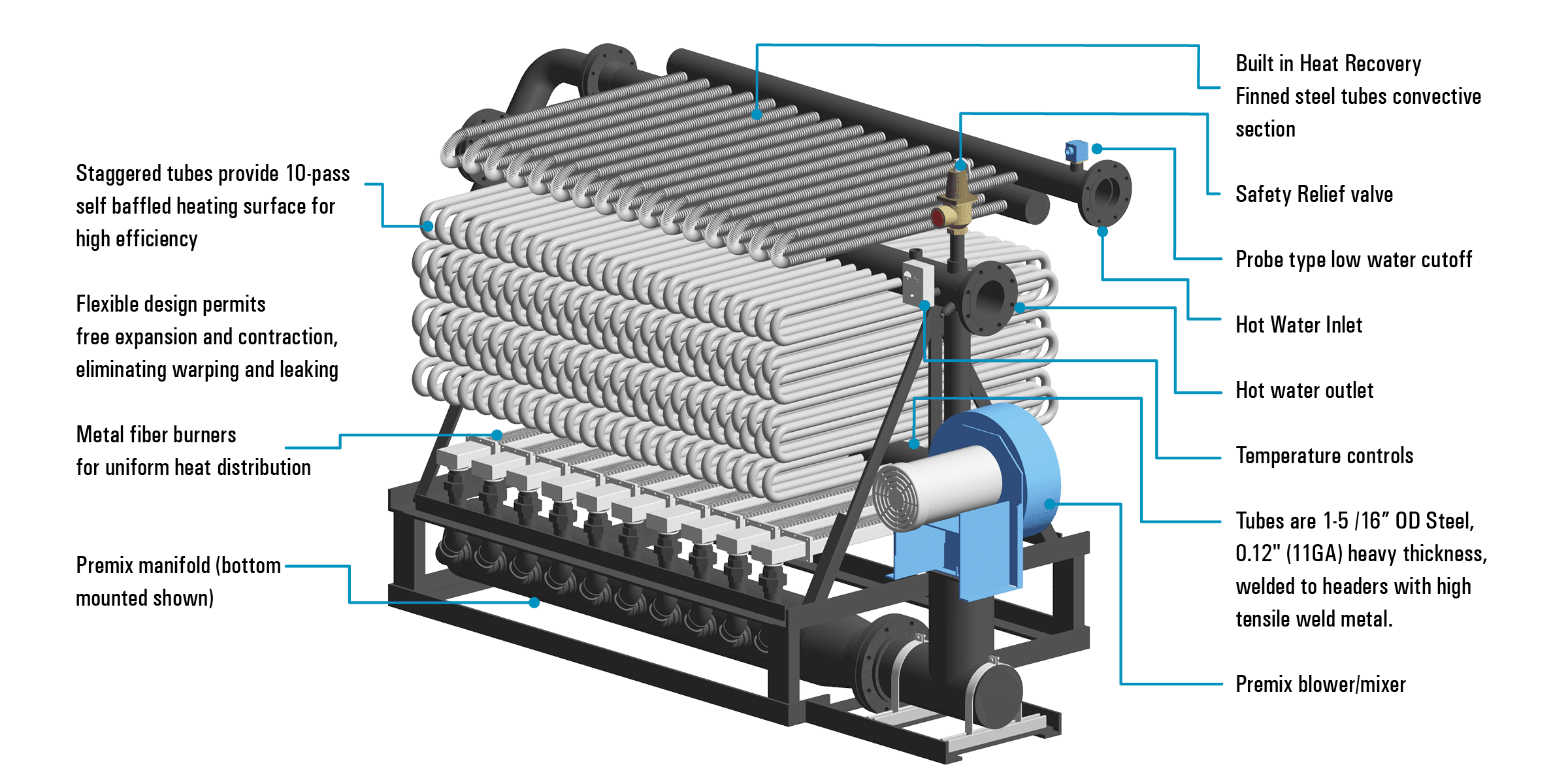

Low NOx Hot Water Boiler With Internal Reclaimer Insert (“LR” Model)
Unlike Conventional Power Burner Technology, the burner bed provides a uniform heat distribution on all boiler tubes for improved heat transfer and boiler efficiency. Uniform heat over the entire heating surface at high, low and modulating firing rates provides longer tube life by eliminating concentrated firing on limited tube surface.

High Efficiency “LR” models incorporate a built in finned steel tube bundle in addition to the standard tubes. These heavy duty finned tubes are placed above the standard Parker Boiler tubes, and they significantly increase the amount of heat absorbed from the flue gases, thus increasing boiler efficiency. With the additional heating surface, the already long Parker Boiler Hot Water Boiler life is extended even further. The efficiency ranges from 83 to 85%.

Low NOx L-Model Anchor Clip Drawings:
Title Download
1,460,000 – 6,800,000 BTU Low NOx Anchor Clip Detail
  1 files      2 downloads
Download
300,000 – 1,140,000 BTU Low NOx Anchor Clip Detail
  1 files      0 download
Download
Low NOx L-Model Boiler Drawings:
Title Download
Low NOx 1,995,000 BTU Boiler Drawing (Model-T1995L) – Multiple Views
  1 files      2 downloads
Download
Low NOx 2,160,000 BTU Boiler Drawing (Model-T2160L) – Multiple Views
  1 files      1 download
Download
Low NOx 2,600,000 BTU Boiler Drawing (Model-T2600L) – Multiple Views
  1 files      0 download
Download
Low NOx 2,970,000 BTU Boiler Drawing (Model-T2970L) – Multiple Views
  1 files      0 download
Download
Low NOx 3,600,000 BTU Boiler Drawing (Model-T3600L) – Multiple Views
  1 files      1 download
Download
Low NOx 3,900,000 BTU Boiler Drawing (Model-T3900L) – Multiple Views
  1 files      0 download
Download
Low NOx 300,000 BTU Boiler Drawing (Model-T300L) – Multiple Views
  1 files      0 download
Download
Low NOx 395,000 BTU Boiler Drawing (Model-T395L) – Multiple Views
  1 files      0 download
Download
Low NOx 4,600,000 BTU Boiler Drawing (Model-T4600L) – Multiple Views
  1 files      0 download
Download
Low NOx 490,000 BTU Boiler Drawing (Model-T490L) – Multiple Views
  1 files      0 download
Download
Low NOx 5,700,000 BTU Boiler Drawing (Model-T5700L) – Multiple Views
  1 files      0 download
Download
Low NOx 6,800,000 BTU Boiler Drawing (Model-T6800L) – Multiple Views
  1 files      0 download
Download
Low NOx 600,000 BTU Boiler Drawing (Model-T600L) – Multiple Views
  1 files      0 download
Download
Low NOx 760,000 BTU Boiler Drawing (Model-T760L) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer LR-Model Anchor Clip Drawings:
Title Download
2,970,000 – 6,800,000 BTU Low NOx Internal Reclaimer Anchor Clip Detail
  1 files      0 download
Download
300,000 – 1,140,000 BTU Low NOx Internal Reclaimer Anchor Clip Detail
  1 files      0 download
Download
Low NOx Internal Reclaimer LR-Model Boiler Drawings:
Title Download
Low NOx Internal Reclaimer 1,460,000 BTU Boiler Drawing (Model-T1460LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 1,730,000 BTU Boiler Drawing (Model-T1730LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 1,995,000 BTU Boiler Drawing (Model-T1995LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 2,600,000 BTU Boiler Drawing (Model-T2600LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 2,970,000 BTU Boiler Drawing (Model-T2970LR) – Multiple Views
  1 files      1 download
Download
Low NOx Internal Reclaimer 3,600,000 BTU Boiler Drawing (Model-T3600LR) – Multiple Views
  1 files      1 download
Download
Low NOx Internal Reclaimer 3,900,000 BTU Boiler Drawing (Model-T3900LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 300,000 BTU Boiler Drawing (Model-T300LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 395,000 BTU Boiler Drawing (Model-T395LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 4,600,000 BTU Boiler Drawing (Model-T4600LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 490,000 BTU Boiler Drawing (Model-T490LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 5,700,000 BTU Boiler Drawing (Model-T5700LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 6,800,000 BTU Boiler Drawing (Model-T6800LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 600,000 BTU Boiler Drawing (Model-T600LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 760,000 BTU Boiler Drawing (Model-T760LR) – Multiple Views
  1 files      0 download
Download
Low NOx Internal Reclaimer 970,000 BTU Boiler Drawing (Model-T970LR) – Multiple Views
  1 files      1 download
Download

NOTE: All drawing dimensions should be verified prior to installation. Due to continuous improvements and irregularities of purchased structural shapes and rounding, dimensions may vary and are subject to change without notice.

If the model of the boiler you are looking for is not readily available here please contact Parker Boiler for more assistance at (323) 727-9800 from 8:00AM to 5:00PM (PST).


Brochures:
Title Download
Hot Water Boiler Summary Brochure
  1 files      28 downloads
Download
Hot Water Boiler Systems Brochure
  1 files      11 downloads
Download
Low NOx Internal Reclaimer LR-Model Brochure
  1 files      4 downloads
Download
Low NOx L-Model Brochure
  1 files      7 downloads
Download
Bulletins:
Title Download
Hot Water Boiler Advantage Sheet
  1 files      3 downloads
Download
Low NOx Hot Water Boiler Trim & Description Sheet
  1 files      4 downloads
Download
Low NOx Internal Reclaimer Hot Water Boiler Trim & Description Sheet
  1 files      2 downloads
Download
Spec Sheets:
Title Download
1,460,000-2,160,000 BTU Low NOx Internal Reclaimer Spec Sheet (standard)
  1 files      3 downloads
Download
1,460,000-6,800,000 BTU Low NOx Spec Sheet (outdoor w/ stackless vent)
  1 files      4 downloads
Download
1,460,000-6,800,000 BTU Low NOx Spec Sheet (outdoor)
  1 files      3 downloads
Download
1,460,000-6,800,000 BTU Low NOx Spec Sheet (side mounted)
  1 files      2 downloads
Download
1,460,000-6,800,000 BTU Low NOx Spec Sheet (standard)
  1 files      11 downloads
Download
2,600,000-3,900,000 BTU Low NOx Internal Reclaimer Spec Sheet (standard)
  1 files      1 download
Download
300,000-1,140,000 BTU Low NOx Internal Reclaimer Spec Sheet (outdoor w/ stackless vent)
  0 files      0 download
Download
300,000-1,140,000 BTU Low NOx Internal Reclaimer Spec Sheet (outdoor)
  1 files      0 download
Download
300,000-1,140,000 BTU Low NOx Internal Reclaimer Spec Sheet (standard)
  1 files      1 download
Download
300,000-1,140,000 BTU Low NOx Spec Sheet (standard)
  1 files      4 downloads
Download
4,600,000-6,800,000 BTU Low NOx Internal Reclaimer Spec Sheet (standard)
  1 files      0 download
Download
