Never A Compromise
For Quality or Safety


T he Atmospheric Burner System, the control system and entire boiler are furnished so that it is simple to operate by regular personnel. Simplicity is a decided advantage as there are no expensive blowers, complicated controls, or burner adjustments, as is necessary on many boilers.

Boilers up to 6,800,000 BTU
Parker Hot Water Boilers are designed specifically to provide the building heating and industrial processing industries with a Superior Quality Boiler with Unequaled Advantages in Safety, Long Life Service and Economical Operation.

Atmospheric Hot Water Boiler Certifications (“T” Model)
All Parker Hot Water Boilers are manufactured in accordance with the ASME Power & Heating Boiler Codes and registered with the National Board of Boiler and Pressure Vessel Inspectors. The standard natural gas fired model is furnished as an Underwriters’ Laboratories, Inc. Listed Gas Fired Boiler Assembly and displays their symbol on the nameplate. Outdoor, propane and Low NOx models are ETL listed. Canadian models are C-ETL Listed Industrial and Commercial Gas Fired Packaged Boilers certified to CAN/CGA 1-3.1 and UL 795.

Atmospheric Hot Water Boiler w/ Internal Reclaimer Certifications (“R” Model)
All Parker Direct Fired Boilers are manufactured in accordance with the ASME Power & Heating Boiler Codes and registered with the National Board of Boiler and Pres-sure Vessel Inspectors. Natural gas and LPG fired models are ETL Listed “Industrial and Commercial Gas Fired Pack-aged Boilers” certified to UL795, for indoor or outdoor service. Canadian models are C-ETL Listed.

Safety
A Parker Boiler has never been known to internally explode nor has it been possible to induce an explosion under severe tests. Thermal shocks are readily absorbed with-out damage due to the unique flexible design and extra heavy steel welded construction.

Advantages (Including Atmospheric and Internal Reclaimer Model)

  • Safety
  • Large Heating Surface
  • Simplicity
  • Efficiency
  • Built-In Finned Tubes (“R” Model only)
  • T-Type Gas Burners
  • Low NOx Available
  • Low Cost Operation
  • Efficient Operation
  • Fast Heat-Up
  • Accessible Internal Inspection
  • Ease of Inspection and Repair
  • Codes
  • Heavy Duty Tubes
  • Heavy Insulated Cabinet

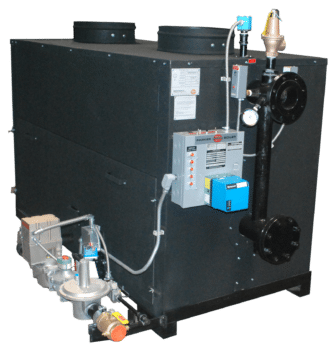

Direct Fired Hot Water Boilers
Atmospheric Gas Fired “T” Models
300,000 to 6,800,000 BTU Gas Fired

Medium and High Temperature Hot Water Boilers
Parker Direct Fired Hot Water Boilers are ideally suited for all phases of medium or high temperature circulating work. Of the utmost importance is our high degree of ability to withstand thermal shock due to flexible bent tube all welded construction. This enables us to provide a 25 year Thermal Shock Warranty. Another prime considerations is the proper circulation of the heating medium through the boiler tubes, our boiler is ideally designed to obtain the exact required circulation. Internal header baffles can be installed in the headers of the entire line of hot water boilers to adequately baffle the flow rate through the boiler to the required design system flow rate. Our 6-10 pass staggered tube design allows for maximum heat absorption of the products of combustion. Glycol and water blend solutions are also used successfully on Parker Boilers.

Typical Direct Fired, Closed System Piping Schematic

Atmospheric Hot Water Boiler Insert (“T” Model)

High Efficiency Direct Fired Hot Water Boilers
Atmospheric Gas Fired “R” Models
300,000 to 6,800,000 BTU Gas Fired

Typical Single Boiler Hot Water Boiler Piping System
Since the circulating system depends on a pump for circulation, it is not important that the pipe be graded in order for condensate to reach a low point. The distribution piping system is easy to install with fewer complications than steam systems.

Atmospheric Hot Water Boiler With Internal Reclaimer (“R” Model)
The Parker steel tube bundle is 1-5/16” O.D. steel, over 1/8″ heavy thickness, and the finned tubes are 1” O.D. (.11”), heavy thickness steel. The welded bent tube design permits free expansion and contraction of each tube independently when subject to thermal shocking. Our design eliminates strain on the metal, warping and leaking, typical of rigid straight tube designs. This construction utilizes heavy material with flexibility to provide extreme safety and long life.

Atmospheric T-Model Anchor Clip Drawings:
Title Download
1,460,000 – 6,800,000 BTU Atmospheric / Internal Reclaimer Anchor Clip Detail
  1 files      1 download
Download
300,000 – 1,140,000 BTU Atmospheric / Internal Reclaimer Anchor Clip Detail
  1 files      1 download
Download
Atmospheric T-Model Boiler Drawings:
Title Download
Atmospheric 1,140,000 BTU Boiler Drawing (Model-T1140) – Multiple Views
  1 files      4 downloads
Download
Atmospheric 1,460,000 BTU Boiler Drawing (Model-T1460) – Multiple Views
  1 files      1 download
Download
Atmospheric 1,730,000 BTU Boiler Drawing (Model-T1730) – Multiple Views
  1 files      1 download
Download
Atmospheric 2,160,000 BTU Boiler Drawing (Model-T2160) – Multiple Views
  1 files      4 downloads
Download
Atmospheric 2,600,000 BTU Boiler Drawing (Model-T2600) – Multiple Views
  1 files      3 downloads
Download
Atmospheric 2,970,000 BTU Boiler Drawing (Model-T2970) – Multiple Views
  1 files      1 download
Download
Atmospheric 3,600,000 BTU Boiler Drawing (Model-T3600) – Multiple Views
  1 files      1 download
Download
Atmospheric 3,900,000 BTU Boiler Drawing (Model-T3900) – Multiple Views
  1 files      0 download
Download
Atmospheric 300,000 BTU Boiler Drawing (Model-T300) – Multiple Views
  1 files      2 downloads
Download
Atmospheric 395,000 BTU Boiler Drawing (Model-T395) – Multiple Views
  1 files      1 download
Download
Atmospheric 4,600,000 BTU Boiler Drawing (Model-T4600) – Multiple Views
  1 files      0 download
Download
Atmospheric 490,000 BTU Boiler Drawing (Model-T490) – Multiple Views
  1 files      1 download
Download
Atmospheric 5,700,000 BTU Boiler Drawing (Model-T5700) – Multiple Views
  1 files      0 download
Download
Atmospheric 6,800,000 BTU Boiler Drawing (Model-T6800) – Multiple Views
  1 files      0 download
Download
Atmospheric 600,000 BTU Boiler Drawing (Model-T600) – Multiple Views
  1 files      1 download
Download
Atmospheric 760,000 BTU Boiler Drawing (Model-T760) – Multiple Views
  1 files      2 downloads
Download
Atmospheric 970,000 BTU Boiler Drawing (Model-T970) – Multiple Views
  1 files      3 downloads
Download
Internal Reclaimer R-Model Anchor Clip Drawings:
Title Download
1,460,000 – 6,800,000 BTU Atmospheric / Internal Reclaimer Anchor Clip Detail
  1 files      1 download
Download
300,000 – 1,140,000 BTU Atmospheric / Internal Reclaimer Anchor Clip Detail
  1 files      1 download
Download
Internal Reclaimer R-Model Boiler Drawings:
Title Download
Internal Reclaimer 1,730,000 BTU Boiler Drawing (Model-T1730R) – Multiple Views
  1 files      0 download
Download
Internal Reclaimer 2,600,000 BTU Boiler Drawing (Model-T2600R) – Multiple Views
  1 files      0 download
Download
Internal Reclaimer 4,600,000 BTU Boiler Drawing (Model-T4600R) – Multiple Views
  1 files      0 download
Download
Internal Reclaimer 5,700,000 BTU Boiler Drawing (Model-T5700R) – Multiple Views
  1 files      0 download
Download
Internal Reclaimer 6,800,000 BTU Boiler Drawing (Model-T6800R) – Multiple Views
  1 files      0 download
Download

NOTE: All drawing dimensions should be verified prior to installation. Due to continuous improvements and irregularities of purchased structural shapes and rounding, dimensions may vary and are subject to change without notice.

If the model of the boiler you are looking for is not readily available here please contact Parker Boiler for more assistance at (323) 727-9800 from 8:00AM to 5:00PM (PST).


Brochures:
Title Download
Hot Water Boiler Summary Brochure
  1 files      28 downloads
Download
Hot Water Boiler Systems Brochure
  1 files      11 downloads
Download
Internal Reclaimer R-Model Brochure
  1 files      13 downloads
Download
Standard Atmospheric T-Model Brochure
  1 files      15 downloads
Download
Bulletins:
Title Download
Atmospheric Hot Water Boiler Installation Drawing
  1 files      8 downloads
Download
Atmospheric Hot Water Boiler Piping Schematic – Dual Boilers
  1 files      7 downloads
Download
Atmospheric Hot Water Boiler Piping Schematic – Single Boiler
  1 files      5 downloads
Download
Atmospheric Hot Water Boiler Piping Schematic – Single Boiler w/ 3-Way Valve
  1 files      2 downloads
Download
Atmospheric Hot Water Boiler Pressure Drop & Flow Rate Chart
  1 files      9 downloads
Download
Atmospheric Hot Water Boiler Trim & Description Sheet
  1 files      4 downloads
Download
Hot Water Boiler Advantage Sheet
  1 files      3 downloads
Download
Internal Reclaimer Hot Water Boiler Trim & Description Sheet
  1 files      3 downloads
Download
Spec Sheets:
Title Download
1,460,000 – 2.600,000 BTU Internal Reclaimer Spec Sheet (outdoor)
  1 files      2 downloads
Download
2,970,000 – 3,900,000 BTU Internal Reclaimer Spec Sheet (outdoor)
  1 files      5 downloads
Download
2,970,000 – 3,900,000 BTU Internal Reclaimer Spec Sheet (standard)
  1 files      2 downloads
Download
300,000 – 1,140,000 BTU Internal Reclaimer Spec Sheet (outdoor w/ stackless vent)
  1 files      5 downloads
Download
300,000 – 1,140,000 BTU Internal Reclaimer Spec Sheet (outdoor)
  1 files      3 downloads
Download
300,000 – 2,600,000 BTU Internal Reclaimer Spec Sheet (standard)
  1 files      6 downloads
Download
4,600,000 – 6,800,000 BTU Internal Reclaimer Spec Sheet (standard)
  1 files      8 downloads
Download
Up to 6,800,000 BTU Atmospheric Spec Sheet (outdoor w/ stackless vent)
  1 files      3 downloads
Download
Up to 6,800,000 BTU Atmospheric Spec Sheet (outdoor)
  1 files      5 downloads
Download
Up to 6,800,000 BTU Atmospheric Spec Sheet (standard)
  1 files      19 downloads
Download
Operation & Maintenance Manuals:
Title Download
Up to 6,800,000 BTU Standard Atmospheric W/ Honeywell Flame Safeguard Manual
  1 files      7 downloads
Download
Up to 6,800,000 BTU Standard Atmospheric W/ S86 Flame Safeguard Manual
  1 files      2 downloads
Download
